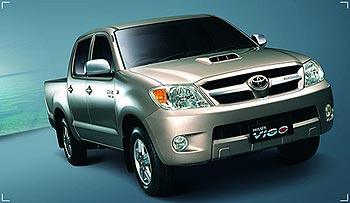

Toyota Hilux Vigo Double Cab Import Export and Sales
Jim Autos Thailand is proud to be Thailand's largest exporter of Double Cab Toyota Hilux Vigo while Jim 4x4 Thailand is Thailand's largest exporter of nearly new or quality used Double Cab Toyota Hilux Vigo or Toyota Hilux Tiger. Email us now at [email protected] for your very own Toyota Vigo or Toyota Hilux Tiger.
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
Double Cab Vigo G and E
|
Grade |
3.0 G AUTO
|
3.0 G
|
3.0 E
|
2.5 E
|
| Model Code |
KUN26R-PRPSYT ( AX )
|
KUN26R-PRMSYT ( AW )
|
KUN26R-PRMSYT ( AV )
|
KUN25R-PRMSHT ( AS )
|
| Size and Weight | ||||
| Outside dimension mm. |
5130 x 1835 x 1820 ( L x W x H )
|
|||
| Wheel length mm. |
3085
|
|||
| Wheel width mm. |
1540 x 1540 ( Front / Back wheel )
|
|||
| Ground clearance mm. |
227
|
|||

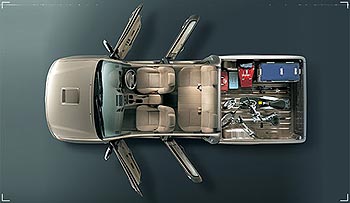

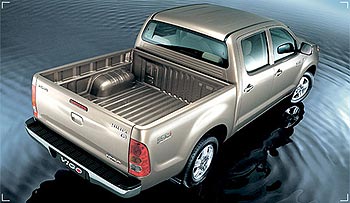

| Tray interior mm. |
1515 x 1520 x 450 ( W x L x H )
|
|||
| Interior mm. |
1475 x 2130 x 1195 ( W x L x H )
|
|||
| Weight (approximately) kg. |
1870
|
1845
|
1825
|
|
| Engine | ||||
|
Engine model
|
1KD FTV
|
2KD-FTV ( I/C ) | ||
|
Engine type
|
4 Cylinder DOHC 16 valve variable nozzle turbo & intercooler
|
4 Cylinder DOHC 16 valve
variable nozzle turbo & intercooler |
||
|
Displacement cc.
|
2982
|
2494
|
||
|
Bore x Stroke mm.
|
97.0 x 103.0
|
92.0 x 93.8
|
||
|
Compression ratio
|
17.9 : 1
|
18.5 : 1
|
||
|
Max output (SAE net) kw(EEC net)/rpm
|
120 ( 163 ) / 3400
|
88 ( 120 ) / 3600
|
||
|
Max torque (SAE net ) (N-m)/rpm
|
343 / 1400 - 3200
|
320 / 2000
|
||
| Fuel providing system |
Direct Injection Commonrail type
|
|||
| Fuel tank capacity litre |
76
|
|||
| Emission Standard |
Euro 3
|
|||
| Chassis | ||||
| Driving system |
4 speed automatic
|
5 speed manual
|
||
| Gear ratio : 1 |
2.804
|
4.313
|
||
| : 2 |
1.531
|
2.330
|
||
| : 3 |
1
|
1.436
|
||
| : 4 |
0.705
|
1.000
|
||
| : 5 |
|
0.838
|
||
| Reverse |
2.393
|
4.220
|
||
| Final gear ratio Per 1 |
3.909
|
3.583
|
3.909
|
|
|
Suspension Front |
Independent-wishbone, torsion bar with stabilizer and automatic
cutout ( A.D.D. )
|
|||
| Back |
Rigid-elliptic leaf springs with limited slip
|
|||
| Brake Front |
Ventilated Discs
|
|||
| Back |
Drum with brake oil valve SUPER LSPV with LTS
|
|||
| Steering |
Power assisted Rack and Pinion
|
|||
| Min. turning radius m. |
6.2
|
|||
| Tyre |
265 / 70R16
|
|||
|
Wheel |
Alloy wheel size 7JJ x 16
|
|||
|
|
||||
|
General equipment
|
||||
| Exterior | ||||
| Bumper bar | Body Coloured | |||

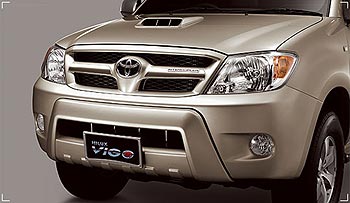

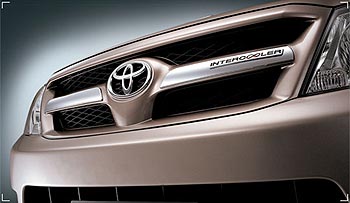

| Front grill | Body Coloured with Chrome | |||

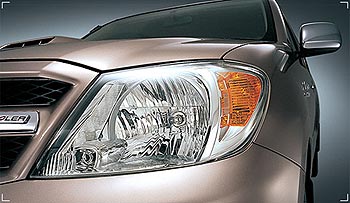

| Front light | Halogen multi reflector | |||

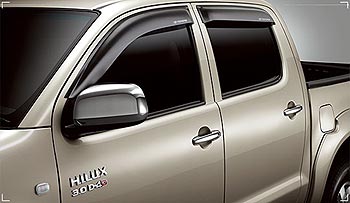

| Door mirrors | Chrome ElectJackcally Adjustable | |||
| Mud flaps | Only 2 wheels at back side | |||
| Door handles ( Grip Type ) | Chrome | |||
| Wiper | Time Setting | |||

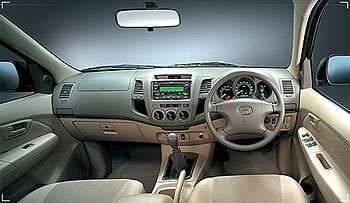

| Interior | ||||

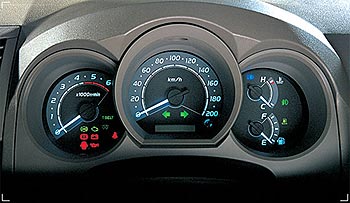

| Instrument panel : | ||||
| Tachometer | ||||
| Kilometer |
Digital
|
|||
| Warning signal : | ||||
|
Fuel level
|
||||
|
Oil filter light
|
||||
|
Headlight- turn off
warning sound |
||||
|
Key warning sound
|
||||
|
Door-closed warning light
|
||||
|
Seat-belt warning light
|
On driver side
|
|||
| Interior lights : | ||||
|
Map light
|
|
|||
|
Cabin light
|
|
|||
|
Key light
|
||||
|
Ashtray |
With Light |
|||
| Rear mirror | Reduction of light -reflecting | |||

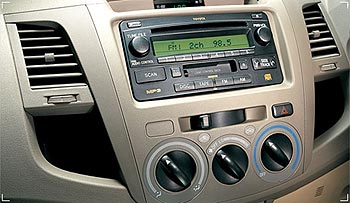

| Audio : | ||||
|
Radio-cassette
|
||||
|
Speakers
|
4
|
|||
|
Antenna
|
Front position
|
|||
| Audio : | ||||
|
Radio-cassette
|
||||
|
Speakers
|
4
|
|||
|
Antenna
|
Front position
|
|||

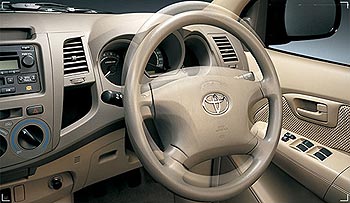

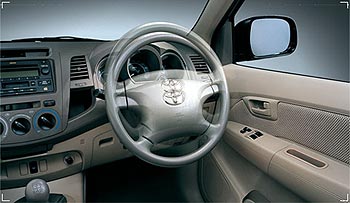

| Steering wheel Adjustable |
|
|||
|
Type
|
Urithene 4 spokes
|
Urithene 3 spokes
|
||

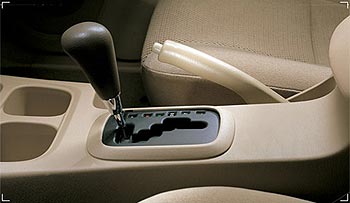

| Hand brake |
at center console
|
|||
|
Transmission 4 x 4 |
||||
| Sun visor : | ||||
|
Driver side
|
With name card keeper
|
|||
|
Passenger side
|
With small mirror
|
|||
| Power windows |
|
|||
| Central lock | ||||
| Key remote |
|
 |
|
|
| Alarm system and key immobilzer |
|
|
|
|
| Power socket |
1 Socket 12 Voltages
|
|||
| Interior handles |
3 positions at front and 2 positions at back
|
|||
| Door console : | ||||
|
Type
|
Standard
|
|||
|
Material
|
Velvet
|
|||
|
Arm rest
|
Front and back
|
|||
|
Seats :
|
|
|||
|
Type
|
Separated type
|
|||
|
Material
|
Velvet creamy colour
|
|||
|
Front seats :
|
Adjustable
|
|||
|
Backward adjusting
|
||||
|
Height level adjusting
|
||||
|
Pillow
|
||||
| Back seats : Type |
Foldable
|
|||
|
Pillow
|
|
|||
| Fuel cap release | ||||

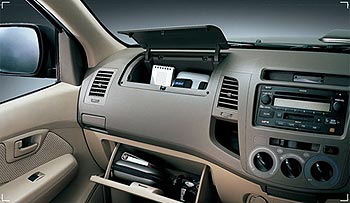

| Glove box : | ||||
|
Center console
|
With cover
|
|||
|
Top console
|
||||
|
Bottom console
|
With key
|
|||
|

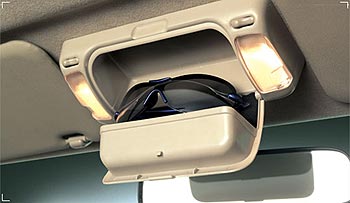

Sun glass box
|
Same position of light map
|
|||
|
Door console
|
4 doors with bottle holder
|
|||
| Cup holder : |
2 positions at front console
1 position at center console |
|||
|
With key
|
||||
|
With bottle holder
|
||||
| Cup holder : |
2 positions at front console
|
2 positions at front console
|
||
|
2 positions at center console
|
1 position at center console
|
|||
|
2 positions at back
|
2 positions at back
|
|||
| Foot rest | ||||
| Active Safety | ||||
| ABS |
|
|
||
| Third brake light |
|
|||
| Fog lights |
|
|
||
| Heated rear windscreen |
|
|||
| Interior door locking |
2 back doors
|
|||
| Passive Safety | ||||
| GOA Body | ||||
| Side racks |
Front and back
|
|||
| Windscreen |
Safety glass
|
|||
| Air bag |
Only driver side
|
|
||
| Seat belts | ||||
|
Front seats
|
ELR 3 points 2 positions
|
|||
|
Rear seats
|
ELR 3 points 2 positions and NR 2 points 1 position
|
|||
|
Adjustable
|
Front passenger seat and drive seat
|
|||
| Collision protection body | ||||
| Collapsable steering wheel | ||||
| Side impact protection | ||||
| Automatic oil valve cutting | ||||
| Extra Equipments | ||||
|
Air-con |
With control switch rotate-type
|
|||
| Audio 1 CD with MP3 |
With 6 speakers
|
|
|
|

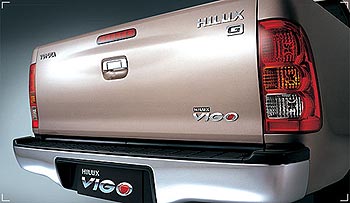

| Rear bumper |
Chrome
|
|||
| Wheel arch |
Body coloured
|
|||
| Side step | ||||
| Fog lights |
|
|
|
|
Vigo Double Cab Specifications G 3.0
| Model grade | G 3.0 A/T | G 3.0 M/T |
| ENGINE | ||
| Model | 1KD-FTV | |
| Type | 3.0 Liter Diesel, 4-Cylinder, 16-Valve, DOHC Variable Nozzle Turbo w/ Intercooler | |
| Displacement cc | 2,982 | |
| Maximum Output Hp/rpm | 163 / 3,400 | |
| Maximum Nm / rpm | 343 / 1,400 - 3,200 | |
| Transmission | 4-Speed Automatic, Gate Type w/ ECT | 5-Speed Manual |
| Fuel System | Direct Injection Common Rail (D-4D) | |
| CHASSIS | ||
| Suspension front front / rear | Double Wishbone with Coil Springs and Stabilizer / Rigid Axle, Leaf Spring | |
| Brake front / rear | Ventilated Disc / Leading-Trailing Drum | |
| Steering System | Rack and Pinion with Power Assist | |
| Tires / Wheels | 255 / 70 R15 7JJ x 15" Alloy | |
| Drivetrain | 4 x 4 Auto Disconnect Differential (A.D.D.) | |
| DIMENSION AND WEIGHT | ||
| Overall length x width x height | 5,255 x 1,835 x 1,810 | |
| Wheelbase | 3,085 | |
| Thread: front / rear | 1,540 / 1,540 | |
| Ground Clearance | 212 | |
| Gross Vehicle Weight | 2,790 | |
| Curb Weight | 1,880 | 1,860 |
| Minimum Turning Radius | 6.5 | |
| Fuel Tank Capacity | 76 | |
| Seating Capacity | 5 | |
| EXTERIOR | ||
| Headlamps | Multi-Reflector Halogen | |
| Front Foglamps | Multi-Reflector Halogen | |
| Bumper front | Color Keyed | |
| Bumper rear | Chrome | |
| Front Grille | Chrome | Color Keyed |
| Front Windshield Wiper | Intermittent Time Adjuster + Mist | |
| Overfenders | Color Keyed | |
| Side Turning Lamp Markers | With | |
| Outside Rear View Mirror | Chrome | |
| Door Outside Handle | Chrome | |
| Side Step | With | |
| INTERIOR | ||
| Seats front | Sliding / Reclining with Headrest (2 pcs) and Driver Vertical Height Adjustment | |
| Seats rear | Foldable with Headrest and Tool Box Compartment | |
| Seat Materials | Full Moquette | |
| Speedometer | Analog | |
| Tachometer | With | |
| Odometer | Digital | |
| Steering Wheel and Column | 4 - Spoke / Tilt-Adjustable | |
| Map Lamp | With + Header Box | |
| Clock | Digital | |
| Shift Knob / Shift Boot | Urethane | |
| Console Box | Dual with Lid | |
| Cupholders / Bottle Holders front | Instrument Panel (2 pcs) + Door Trim (2 pcs) | |
| Cupholders / Bottle Holders rear | Console Box (2 pcs) + Door Trim (2 pcs) | |
| Sunvisor | Driver (with ticket holder) + passenger (with Vanity Mirror) | |
| Door Trim | Moulded, Fabric | |
| Door Packets | Front and Rear | |
| Inner Rear View Mirror | Day and Night | |
| FUNCTION | ||
| Power Features | Window, Doorlock, Outside Rear View Mirror | |
| Cigarette Lighter | With Illumination | |
| Accessory Power Outlet | Front (12v) | |
| Airconditioning System | Single, Manual | |
| Key Remind | With | |
| Antenna | Pillar Mounted | |
| Vehicle Security System | With Keyless Entry | |
| SAFETY | ||
| SRS Airbag | Driver Side | |
| Seatbelts front / rear | 3-point ELR x 2 / 3-point ELR x 2 + 2-point NR x 1 | |
| Child Proof Lock | With | |
| High Mount Stop Lamp | With (Tail Gate Integrated), LED Type | |
| Side Door Impact Beam | With | |
Vigo 2WD Double Cab
|
Model : |
Hilux Vigo Double Cab 1KD 3.0 G Auto |
Hilux Vigo Double Cab 1KD 3.0 G |
Hilux Vigo Double Cab 2KD 2.5 J |
Hilux Vigo Double Cab 2KD 2.5 J-PS |
|
Engine Type : |
1KD-FTV Inline 4 DOHC VN Turbo Intercooler |
1KD-FTV Inline 4 DOHC VN Turbo Intercooler |
2KD-FTV Inline 4 DOHC VN Turbo |
2KD-FTV Inline 4 DOHC VN Turbo |
|
Engine Capacity : |
2982 |
2982 |
2494 |
2494 |
|
Style : |
Double Cab |
Double Cab |
Double Cab |
Double Cab |
|
Driving System : |
2WD |
2WD |
2WD |
2WD |
|
Transmission : |
Automatic 4 speed |
Manual 5 Speed |
Manual 5 Speed |
Manual 5 Speed |
Vigo 4WD Double Cab
|
Model : |
Hilux Vigo 4WD Double Cab 1KD 3.0 G Auto |
Hilux Vigo 4WD Double Cab 1KD 3.0 G Manual |
Hilux Vigo 4WD Double Cab 1KD 2.5 E Manual |
Hilux Vigo 4WD Double Cab 2KD 2.5 E Manual |
|
Engine Type : |
1KD-FTV Inline 4 DOHC VN Turbo Intercooler |
1KD-FTV Inline 4 DOHC VN Turbo Intercooler |
1KD-FTV Inline 4 DOHC VN Turbo Intercooler |
2KD-FTV Inline 4 DOHC VN Turbo Intercooler |
|
Engine Capacity : |
2982 |
2982 |
2982 |
2494 |
|
Style : |
Double Cab |
Double Cab |
Double Cab |
Double Cab |
|
Driving System : |
4WD |
4WD |
4WD |
4WD |
|
Transmission : |
Automatic 4 speed |
Manual 5 Speed |
Manual 5 Speed |
Manual 5 Speed |
Grade E 2.5
| Model grade | HILUX E (KUN15L-PRMSYM)K}K} |
| ENGINE | |
| Model | 2KD-FTV |
| Type | 2.5 Liter Diesel, 4-Cylinder, 16-Valve, DOHC Variable Nozzle Turbo |
| Displacement cc | 2,494 |
| Maximum Output Hp/rpm | 102 / 3,600 |
| Maximum Nm / rpm | 200 / 1,400 - 3,400 |
| Transmission | 5-speed M/T |
| Fuel System | Direct Injection Common Rail (D-4D) |
| CHASSIS | |
| Suspension front / rear | Double Wishbone with Coil Springs and Stabilizer / Rigid Axle, Leaf Spring |
| Brake front / rear | Ventilated Disc / Leading-Trailing Drum |
| Steering System | Rack and Pinion with Power Assist |
| Tires / Wheels | 205/70 R15 7JJ x 15" Alloy |
| Drivetrain | 4 x 2 |
| DIMENSION AND WEIGHT | |
| Overall lenght x width x height | 5,255 x 1,760 x 1,695 |
| Wheelbase | 3,085 |
| Thread: front / rear | 1,510 / 1,510 |
| Ground Clearance | 181 |
| Gross Vehicle Weight | 2,650 |
| Curb Weight | 1,655 |
| Minimum Turning Radius | 6.3 |
| Fuel Tank Capacity | 76 |
| Seating Capacity | 5 |
| EXTERIOR | |
| Headlamps | Multi-Reflector Halogen |
| Front Foglamps | Without |
| Bumper front | Color Keyed |
| Bumper rear | Crome |
| Front Grille | Color Keyed |
| Front Windshield Wiper | Intermittent Time Adjust + Mist |
| Overfenders | Without |
| Side Turning Lamp Markers | With |
| Outside Rear View Mirror | Chrome |
| Door Outside Handle | Chrome |
| Side Step | Without |
| INTERIOR | |
| Seats front | Sliding / Reclining with Headrest (2 pcs) and Driver Vertical Height Adjustment |
| Seats rear | Foldable with Headrest and Tool Box Compartment |
| Seat Materials | Full Moqutte |
| Speedometer | Analog |
| Tachometer | With |
| Odometer | Digital |
| Steering Wheel and Column | 3 - Spoke / Tilt-Adjustable |
| Map Lamp | Without |
| Clock | Digital |
| Shift Knob / Shift Boot | Urethane |
| Console Box | Dual with LID |
| Cupholders / Bottle Holders front | Instrument Panel (2 pcs) + Door Trim (2 pcs) |
| Cupholders / Bottle Holders rear | Door Trim (2 pcs) |
| Sunvisor | Driver (with ticket holder) + Passenger (with Vanity Mirror) |
| Door Trim | Moulded, Fabric |
| Door Packets | Front and Rear |
| Inner Rear View Mirror | Day and Night |
| FUNCTION | |
| Power Features | Window, Doorlock, Outside rear view mirror |
| Cigarette Lighter | With illumination |
| Accessory Power Outlet | Front (12v) |
| Airconditioning System | Single, Manual |
| Key Remind | Without |
| Antenna | Pillar Mounted |
| Vehicle Security System | With Keyless Entry |
| SAFETY | |
| SRS Airbag | Driver |
| Seatbelts front / rear | 3-point ELR x 2 / 3-point ELR x 2 + 2-point NR x 1 |
| Child Proof Lock | With |
| High Mount Stop Lamp | With (Tail Gated Integrated) |
| Side Door Impact Beam | With |
Hilux J 2500 cc
| Model grade | HILUX J (KUN15L-PRMDYM) |
| ENGINE | |
| Model | 2KD-FTV |
| Type | 2.5 Liter Diesel, 4-Cylinder, 16-Valve, DOHC Variable Nozzle Turbo |
| Displacement cc | 2,494 |
| Maximum Output Hp/rpm | 102 / 3,600 |
| Maximum Nm / rpm | 200 / 1,400 - 3,400 |
| Transmission | 5-speed M/T |
| Fuel System | Direct Injection Common Rail (D-4D) |
| CHASSIS | |
| Suspension front front / rear | Double Wishbone with Coil Springs and Stabilizer / Rigid Axle, Leaf Spring |
| Brake front / rear | Ventilated Disc / Leading-Trailing Drum |
| Steering System | Rack and Pinion with Power Assist |
| Tires / Wheels | 195 R14C Steel |
| Drivetrain | 4 x 2 |
| DIMENSION AND WEIGHT | |
| Overall lenght x width x height | 5,130 x 1,760 x 1,695 |
| Wheelbase | 3,085 |
| Thread: front / rear | 1,510 / 1,510 |
| Ground Clearance | 181 |
| Gross Vehicle Weight | 2,650 |
| Curb Weight | 1,645 |
| Minimum Turning Radius | 6.3 |
| Fuel Tank Capacity | 76 |
| Seating Capacity | 5 |
| EXTERIOR | |
| Headlamps | Multi-Reflector Halogen |
| Front Foglamps | Without |
| Bumper front | Black |
| Bumper rear | Without |
| Front Grille | Black |
| Front Windshield Wiper | Mist Only |
| Overfenders | Without |
| Side Turning Lamp Markers | With |
| Outside Rear View Mirror | Black |
| Door Outside Handle | Black |
| Side Step | Without |
| INTERIOR | |
| Seats front | Sliding / Reclining with Headrest (2 pcs) |
| Seats rear | Foldable with Headrest and Tool Box Compartment |
| Seat Materials | Fabric |
| Speedometer | Analog |
| Tachometer | With |
| Odometer | Digital |
| Steering Wheel and Column | 3 - Spoke / Tilt-Adjustable |
| Map Lamp | Without |
| Clock | Digital |
| Shift Knob / Shift Boot | Urethane |
| Console Box | Single |
| Cupholders / Bottle Holders front | Instrument Panel (2 pcs) + Door Trim (2 pcs) |
| Cupholders / Bottlle Holders rear | Door Trim (2 pcs) |
| Sunvisor | Driver (with ticket holder) |
| Door Trim | Moulded, Fabric |
| Door Packets | Front and Rear |
| Inner Rear View Mirror | Day and Night |
| FUNCTION | |
| Power Features | Without |
| Cigarette Lighter | With |
| Accessory Power Outlet | Without |
| Airconditioning System | Single, Manual |
| Key Remind | Without |
| Antenna | Pillar Mounted |
| Vehicle Security System | Without |
| SAFETY | |
| SRS Airbag | Driver |
| Seatbelts front / rear | 3-point ELR x 2 / 3-point ELR x 2 + 2-point NR x 1 |
| Child Proof Lock | With |
| High Mount Stop Lamp | Without |
| Side Door Impact Beam | With |
 |
 |
 |
| Return to our page on Toyota Hilux Vigo | Return to Index Page | Email us now at [email protected] |
It
is our great pleasure to welcome you to our website. According to Statcounter,
you are the
-th visitor to our site since the beginning of
this year.
Dan 4x4, Jim Group of Companies, Jim 4x4, Jim Thailand, Jim Autos United Kingdom, Jim Australia, Jim Dubai or its sister companies shall not be liable for any loss or damage caused by the usage of any information obtained from this web site. Companies referred to in this web site shall not be construed as agents nor as companies recommended by Dan 4x4 Thailand, Jim Group or any of its subsidiaries.
©
2001-2017 ::
Dan Group Of Companies
:: All rights reserved ::
